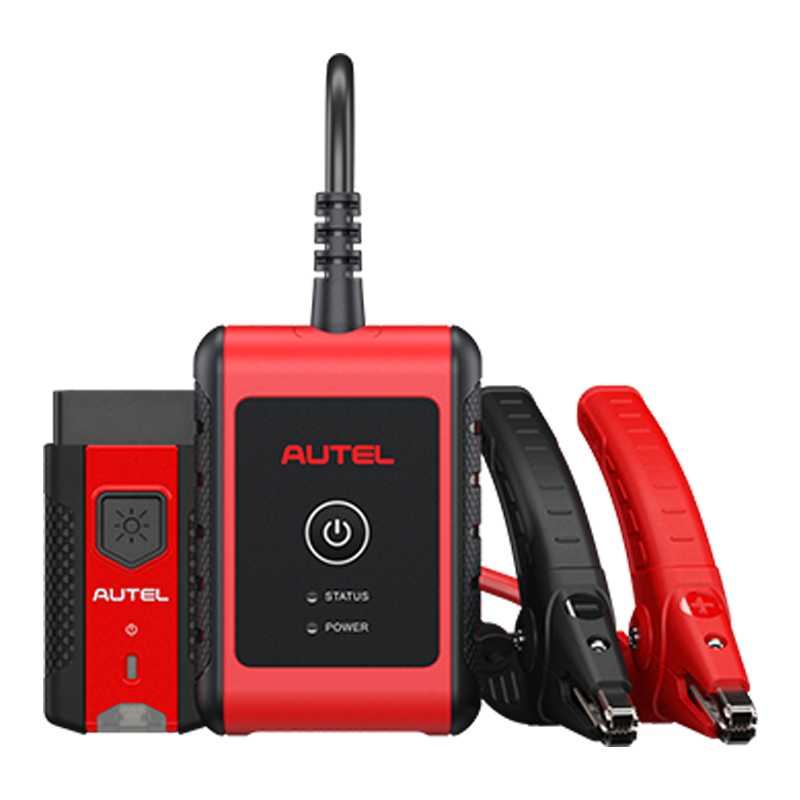

The BT508 is powerful yet, lightweight battery and electrical system tester that uses Adaptive Conductance, an advanced battery analysis method, to produce a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. Download the free and easy-to-use mobile app, available for iOS and Android devices, to use with the BT508 to perform testing and display test results. The BT508 package includes a wireless Bluetooth vehicle communication interface enabling battery and electrical component registration.
| Item | Description |
| Connectivity | l USB 2.0, Type C
l Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode |
| Input Voltage | 5 V DC |
| Working Current | < 150 mA at 12 V DC |
| CCA Range | 100 to 2000 A |
| Voltage Range | 6 to 36 V |
| Working Temperature | -10° to 50° C (14° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Dimension (L x W x H) | 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included) |
| Weight | 320 g (0.7 lb.) |
BT508 Sales Flyer
