Mobile Tyre Changer 13″-27″ for Mobile Tyre Service for Trucks, Buses and Road Transport Vehicles
Interested? Send an enquiry or offer and we'll do our best to match this

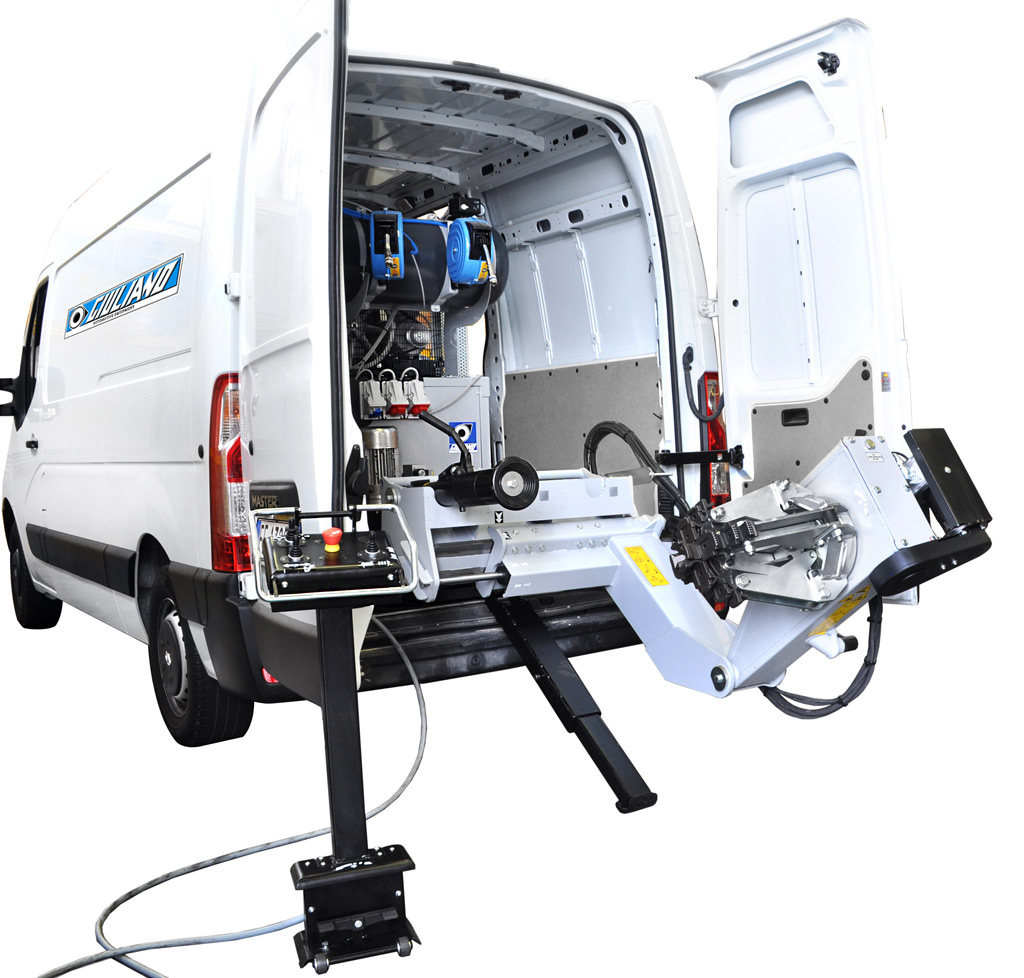

S562 tyre changer is designed for mobile tyre service for trucks, buses and road transport vehicles (tube and tubeless tyres). This fully hydraulic machine fits into most common commercial vans through either the side or rear door and is equipped with adjustable support-foot for firm positioning in any situation.
Mobile tyre changer with electro-hydraulic clamping chuck is equipped with multi-stage clamping jaws with plastic protections for alloy wheels allows clamping of rims with a centre hole even of only Ø 80 mm and a total diameter of up to 27″. Equipped with ergonomic wheeled control-console with simple commands layout, suitable for remote control installation (optional). Nylon bead breaker roller for alloy rims. Self-lubricating bushes in all articulated joints. Electro-hydraulic unit with easy inspection area for maintenance.
Min. size of van’s door required for complete assembly’s installation: 1100 mm x 1750 mm. The truly space-saving tyre changer for mobile tyre service, designed for a fast and efficient workflow.
Equipped with a new optional power unit (generator+compressor), as an ideal mobile workstation that allows you to work on the road with the same features and performance as in your tyre service workshop.
Optional POWER UNIT (GENERATOR + COMPRESSOR): Dual-cylinder pump for air compressor. Compressed air tank. Hose coilers in easily accessible position. Electric sockets 1Ph and 3Ph with thermal circuit breaker. Fuel tank for diesel engine. Battery for diesel engine. Lombardini /Kohler diesel engine.
Complete your mobile tyre service set with S 861 Balancer!!
S562 mobile tyre changer is the perfect solution for mobile tyre service, fitting any common commercial van for side or back door installation and fully hydraulic operated.
|Rim clamping range
|Max. tyre diameter
|1600 mm (63″)
|Max. tyre width
|870 mm (34″)
|Max. tyre assembly weight
|Max. bead-breaker cylinder force
|Rim center hole minimum clamping diameter
|130 Bar (1885 Psi)
|400V – 3ph
Other voltages and frequencies available upon request
|Hydraulic pump motor
|2,2 kW 400V 3ph
|Gearbox motor power
|Generator + Compressor net weight
|Max overall dimensions
|1000 x 1030 x 1580 mm
|Max overall dimensions with generator/compressor
|1610 x 1030 x 1580 mm
